LDF4-50A | 1/2″ Coax Cable Blk 50 Ohm

LDF4-50A | 1/2″ Coax Cable Blk 50 Ohm

77821

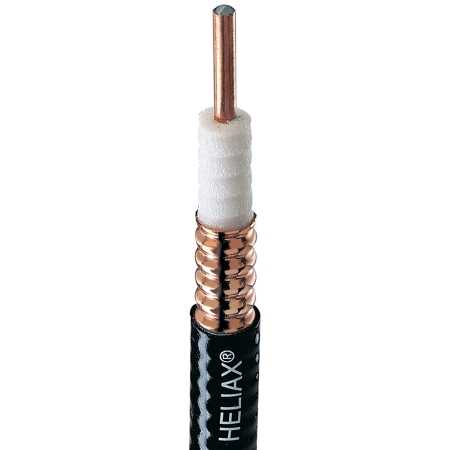

LDF4-50A, HELIAX® Low Density Foam Coaxial Cable, corrugated copper, 1/2 in, black PE jacket (Halogen free jacketing non-fire- retardant)

LDF4-50A, HELIAX® Low Density Foam Coaxial Cable, corrugated copper, 1/2 in, black PE jacket (Halogen free jacketing non-fire- retardant)

  • Cable Impedance 50 ohm ±1 ohm
  • Capacitance 75.8 pF/m 1 23.104 pF/ft
  • dc Resistance, Inner Conductor 1.48 ohms/km I 0.451 ohms/kft
  • dc Resistance, Outer Conductor 2.69 ohms/km I 0.82 ohms/kft
  • dc Test Voltage 4000 V Inductance 0.19 pH/m 1 0.058 pH/ft
  • Insulation Resistance 100000 Mohms•km
  • Jacket Spark Test Voltage (rms) 8000 V
